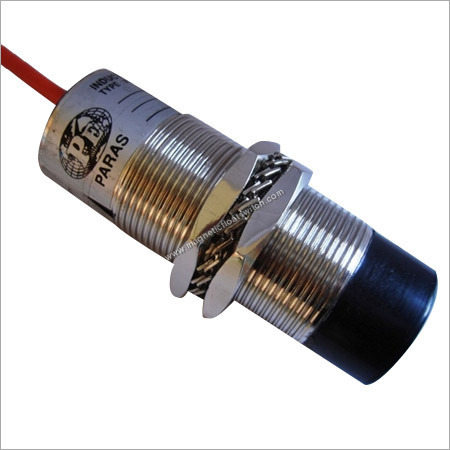

Inductive Proximity Switch

Name: Inductive Proximity Switch
Brand: PARASNATH ELECTRONICS PVT. LTD.
Price: 550 INR
Availability: InStock

Price 550 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Inductive Proximity Switch Specification

Measuring Range
-5-75 Celsius (oC)

Current
300AMP Ampere (amp)

Sensor Type
DC Type

Frequency
150 Hertz (HZ)

Product Type
Inductive Proximity Sensor

Operating Temperature
-5-75 Celsius (oC)

Working Temperature
-5-75 Celsius (oC)

Diameter
30 Millimeter (mm)

Application
MEATAL INTDUSTRIES USED

Supply Voltage
5-40 Volt (v)

Dimension (L*W*H)
30x65 Millimeter (mm)

Warranty
1 YEAR MANUFACTURING

Inductive Proximity Switch Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
50 Pieces Per Day

Sample Available
Yes

Packaging Details
International norms. Each piece is packed in separate bubble polythene bag and then in individual corrugated box. As per

Main Domestic Market
All India

Certifications
CE APPROVED

About Inductive Proximity Switch

Inductive Proximity Switch

We Are A Prominent Organization, Engaged In Manufacturing And Supplying Dc Type Proximity Switches. These Switches Are Manufactured By Our Skilled Professionals By Making Use Of Quality Materials, Procured From The Authorized Vendors Of The Market. We Manufacture These Switches In Our Huge Infrastructure Facility Using Latest Technology And Machines. These Dc Type Proximity Switches Are Used To Operate Proximity Sensors Which In Turn Are Used To Detect The Presence Of Objects.

Other Details:

Model No. : Pe-In-15-30-P1-65-Nf
Size : M-30X65
Type : Pnp
Output Logic : No
Operating Voltage : 5-40 Vdc
Max. Load Curren : 300 Mamp.
Sensing Distance : 15.0Mm For Standard Object Size
Switching Frequency : 150 Hz.
Voltage Drop At Full Load : 2.5 Vdc
No Load Current : >10.0 Mamp.
Residual Current : 0.001 Mamp.
Position Indication : Led
Cable : 3 Core Pvc & Pu Flexible
H.V. Test : 1.5 Kv For 1 Sec.
Ambient Temp. : 700 C
Enclosure : Nickel Platted Brass Tube
Probe Size : M-30X65
Mounting : Non Flush Type
Protection Grade : Ip-67
Approvals : Ce
Standard object Size: 35X35X1 Mm

The Proximity Switches Dc Type Are Available In Pnp / Npn Type And Logic Available No / Nc & No+Nc, 2 Wire , 3Wire And 4 Wire.

Applications

Inductive Proximity Switches Or Sensors Are Primarily Used When The Object To Be Sensed Is Metallic, That Is Inductive Proximity Switches Are Used To Detect The Position Of Metals (Any Type). Some Applications Of Inductive Proximity Switches Are Machine Tools, Textile, Sugar, Cement, Automobile Industries And Many More.

Precision Sensing for Metal Industries

Specifically designed for metal industry tasks, this inductive proximity switch delivers accurate detection of metallic objects without direct physical contact. Its robust build and high current capacity ensure longevity and performance, even under intense workloads and harsh operating environments.

Versatile Electrical and Temperature Specifications

The proximity switch is compatible with a broad range of supply voltages (540V) and maintains optimal performance in variable temperatures from -5C to 75C. Its frequency output of 150 Hz facilitates rapid response, making it ideal for high-speed automation requirements in industrial settings.

FAQs of Inductive Proximity Switch:

Q: How is the Inductive Proximity Switch installed in metal industry applications?

A: The switch is typically mounted near metallic objects to be detected, using its compact 30x65 mm dimensions for easy placement. Installation involves connecting the sensor to a 540V DC power supply, ensuring proper alignment for accurate sensing.

Q: What are the primary benefits of using this proximity switch in industrial automation?

A: It provides non-contact detection, minimizing wear and tear, and enhances safety and efficiency in automated machines. Its wide temperature and voltage tolerance make it reliable in tough industrial conditions.

Q: Where can the Inductive Proximity Switch be utilized within metal industries?

A: It is suitable for applications such as machinery safety interlocks, conveyor belt monitoring, automated assembly lines, and metal part positioning tasks across manufacturing plants.

Q: When should this sensor be deployed for optimal performance?

A: The sensor is best used in environments where frequent detection of metallic objects is required and where physical contact with moving parts should be minimized for safety reasons.

Q: What is the process for integrating this switch into automated systems?

A: Integration involves wiring the switch to the control systems input, ensuring it operates within the specified voltage and current ratings, and calibrating sensitivity to suit the specific applications metal detection needs.

Q: How does this proximity switch operate under extreme temperatures and high currents?

A: With its robust design, the switch functions reliably in environments ranging from -5C to 75C and handles up to 300AMP, ensuring uninterrupted sensing even during heavy-duty industrial processes.
