Photoelectric Proximity Sensors

Photoelectric Proximity Sensors
Photoelectric Proximity Sensors
Product Code : Through Beam Sensor
Brand Name : PARAS
Product Description

Our Valued Patrons Can Avail From Us Premium Quality Photoelectric Proximity Sensors. Our Team Of Highly Trained Professionals Manufacture These Sensors Using Quality Materials And Components, Procured From The Trustworthy Vendors Of The Market. The Offered Sensors Are Used In Various Equipment To Detect The Absence Or Presence Of An Object. These Photoelectric Proximity Sensors Are Used In Smoke Detectors, Safes And Doors. We Examine These Sensors Conducting Stringent Tests To Ensure High Performance

Other Details:

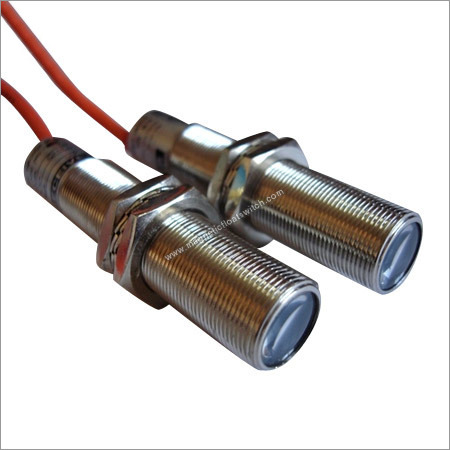

Through Beam Type Photo Electric Proximity  Switch

      Model No.----PE-20D-18T-P-10
1.       Size   : M-18
2.       Type  : Pnp
3.       Output Logic  : No
4.       Operating Voltage  : 10-30 Vdc
5.       Max. Load Current  : 300 Mamp.
6.       Sensing Distance  : 2 Mtr. For Standard Object Size
7.       Switching Frequency  : 250 Hz.
8.       Position Indication : Led
9.       Cable   : 3 Core Pvc & Pu Flexible
10.   H.V. Test  : 1.5 Kv For 1 Sec.
11.   Ambient Temp.    : 700 C
12.   Enclosure  : Nickel Platted Brass Tube
13.   Probe Size : 18
14.   Approval   : Ce
15.   Standard object Size  : 20x20x1

Photo Electric Proximity Switch

Photo Electric Proximity Switches Or Sensors Are Primarily Used When The Object To Be Sensed Is Metallic Or Non Metallic.  Photo Electric Sensors Are Three Different Types:-

  1. Diffused Type Photo Electric Proximity Switch,
  2. Through Beam Type Proximity Switch
  3. Retro refractive  type Proximity Switch.

Working Principal

  1. Diffused Type

These Type Of Proximity Switches  contain  An  emitter And A  receiver In One Unit.

When The Emitter Emits The Infrared Signal Which Is Reflected From The Surface Of The Object To Be Detected And Is Ultimately  received By The Receiver.  This Will Change The Output Stage.

2         Through Beam Type

These Type Of Proximity Switches Contain Separate Emitter And Receiver, When Emitter Emits The Infrared Signal Which Is Continuously Received By The Receiver  and When An Object Comes In Between The Emitter And Receiver, The  Signal Breaks  and Thus Change The Output Signal.

      3    Retro reflective Type

These Type Of Proximity Switches  containing Emitter And Receiver In One Unit And A Reflector Is Used To Reflect The Zero Diffused Beam. When An Object Comes In Between These Two The Beam Is Broken And The Output Will Changed Its Signal

Photo Electric Proximity Switches Are Used To Counting On Conveyor Belts, Webtewar Monitoring, Sensing The End Of A Roll  Etc.
