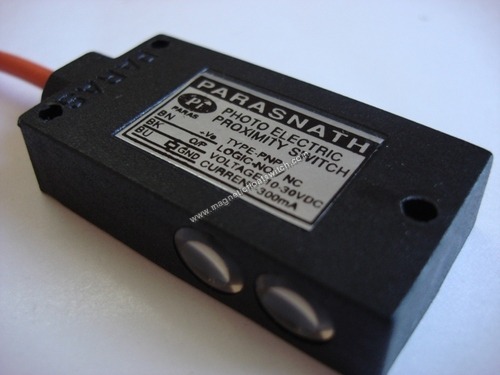

Photo Electric Proximity Switches (Diffused type)

Photo Electric Proximity Switches  (Diffused type)

Product Details:

  • Max. Current 300AMP Ampere (amp)
  • Product Type PROXIMITY SENSOR
  • Max. Voltage 10-30VDC Volt (V)
  • Size DIFFRNTS TYPES SIZES
175.00 - 9000.00 INR
X

Price And Quantity

  • 175.00 - 9000.00 INR
  • 05 Piece

Product Specifications

  • PROXIMITY SENSOR
  • 300AMP Ampere (amp)
  • 10-30VDC Volt (V)
  • DIFFRNTS TYPES SIZES

Trade Information

  • Yes
  • Contact us for information regarding our sample policy
  • International norms. Each piece is packed in separate bubble polythene bag and then in individual corrugated box. As per
  • All India
  • CE APPROVED

Product Description

Photo Electri c Proximity Switch
  • Model No.-PE-PH-2D-P-
  • Size : R-12x30x55
  • Type : Pnp
  • Output Logic : No
  • Operating Voltage : 10-30 Vdc
  • Max. Load Current : 300 Mamp.
  • Sensing Distance : 200 Mm Adj. For Standard Object Size
  • Switching Frequency : 300 Hz.
  • Position Indication : Led
  • Cable : 3 Core Pvc & Pu Flexible
  • H.V. Test : 1.5 Kv For 1 Sec.
  • Ambient Temp : 700 C
  • Enclosure: Nickel Platted Brass Tube
  • Probe Size: 12x30x55
  • Approvals : Ce

Photo Electric Proximity Switches Or Sensors Are Primarily Used When The Object To Be Sensed Is Metallic Or Non Metallic.

Photo Electric Sensors Are Three Different Types:-

  • Diffused Type Photo Electric Proximity Switch,
  • Through Beam Type Proximity Switch
  • Retro refractive type Proximity Switch.

Working Principal

1. Diffused Type

These Type Of Proximity Switches contain An emitter And A receiver In One Unit.
When The Emitter Emits The Infrared Signal Which Is Reflected From The Surface Of The Object To Be Detected And Is Ultimately received By The Receiver. This Will Change The Output Stage.

2  Through Beam Type

These Type Of Proximity Switches Contain Separate Emitter And Receiver, When Emitter Emits The Infrared Signal Which Is Continuously Received By The Receiver and When An Object Comes In Between The Emitter And Receiver, The Signal Breaks and Thus Change The Output Signal.

3 Retro reflective Type

These Type Of Proximity Switches containing Emitter And Receiver In One Unit And A Reflector Is Used To Reflect The Zero Diffused Beam. When An Object Comes In Between These Two The Beam Is Broken And The Output Will Changed Its Signal
Photo Electric Proximity Switches Are Used To Counting On Conveyor Belts, Webtewar Monitoring, Sensing The End Of A Roll Etc.
