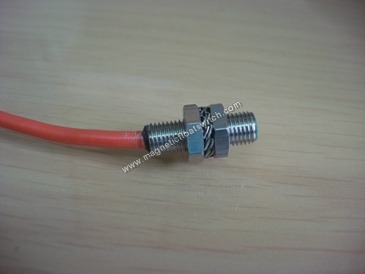

Intrinsically Safe Proximity Switch

Parasnath Electronics was established in 1994 and is an ISO 9001:2000 certified Company.

      It is involved in manufacturing of different types of  industrial Products like Proximity Switch  such as INDUCTIVE / MAGNETIC / PHOTO ELECTRIC / CAPACITIVE and LDR TYPE , FLOAT SWITCHES, FLOW SWITCHES, SWITCH MODE POWER SUPPLY ( SMPS POWER SUPPLY), MAGNEIC DOOR CONTECT FOR SECURITY ALARM SYSTEMS, SHUTTER SENSOR ETC and BREAKINTERLOCK SYSTEMS FOR AIRCRAFT REFULER AND DISPANCER ETC.

Model No.--------------PE-IN-1.5-8-NA2-22-F

1.       SIZE-------M-8X22

2.       TYPE------NAMMUR

3.       OUTPUT LOGIC------NC

4.       OPERATING VOLTAGE------8-28 VDC

5.        LOAD CURRENT (Normal Open)------"1.0 mAmp.

6.       LOAD CURRENT (Normal Close)-------6.0 mAmp.

7.       SENSING DISTANCE--------1.5 mm for standard object size

8.       SWITCHING FREQUENCY-------2500 Hz.

9.       RESIDUAL CURRENT------ 0.001 mAmp.

10.   POSITION INDICATION------- LED

11.   CABLE------- 2 core PVC & PU Flexible

12.   H.V. TEST-------1.5 KV for 1 Sec.

13.   AMBIENT TEMP.------- 700 C

14.   ENCLOSURE------Nickel Platted Brass Tube

15.   PROBE SIZE-------M-8x22

16.   MOUNTING------ Flush Type

17.   PROTECTION GRADE------IP-67

18.   APPROVALS-------- CE & CMRI & IP-67

19.   STANDARD OBJECT SIZE-----10X10X1 mm
